Back Lit Channel Letters — Sophisticated Halo Glow for Upscale LA Brands
Solid-face aluminum letters mounted on standoff pins that cast a soft halo of LED light onto the wall behind them. Subtle, elegant, and unmistakably premium — the signage type property managers and architects quietly prefer. Designed, fabricated, and installed under one roof in Gardena.
What Are Back Lit Channel Letters?
Three-dimensional individually fabricated letters with a solid (non-illuminated) front face. LED modules are mounted inside the letter and aimed rearward, projecting a soft ring of light onto the wall behind each letter. The result is a subtle halo effect — visible but never shouting.
Anatomy of a halo-lit letter
The effect looks like magic. The engineering is precise: solid face, open back, rear-firing LEDs, and a measured gap between the letter and the wall.
-
1
Solid aluminum face
0.063"–0.080" aluminum, CNC cut to letter shape. Mathews Paint finish for exact PMS brand color — crisp and sculptural by day.
-
2
Aluminum return
Side wall of the letter, typically 3"–5" deep. Houses the LEDs and protects them from weather. Painted to match the face.
-
3
Rear-facing LED modules
UL Listed, commercial-grade LEDs mounted inside the letter, aimed at the wall behind. Calibrated spacing produces an even halo.
-
4
Standoff mount (1–2")
Stainless hardware holds the letter 1" to 2" off the wall. Close enough for a defined halo, far enough to let the glow bloom.
What Back Lit Channel Letters Cost in LA
Case-by-case — we quote firm after a site visit or artwork review.
Pricing is case-by-case. Every halo-lit channel letter project is custom — letter count, size, face/return material, standoff depth, mounting method — all affect cost. We provide a firm quote after a site visit or artwork review.
Permits are a fixed $1,500 — our flat fee for permit runners, drawings, and city coordination. City fees (plan check, inspection, use permits) are billed at cost with zero markup and paid directly by the client. See Sign Permits for the full policy.
Standard lead time is 2–3 weeks for production after permit approval. Complex fabrication may add time; we tell you upfront.
Three Ways to Mount a Halo Lit Set
The mounting method determines how crisp the halo looks and how the landlord reviews your permit. We pick the right method for your facade after a site survey.
Precision Standoff Pins
Each letter floats 1–2" off the wall on stainless standoffs. Produces the cleanest, most defined halo — the gold-standard halo mount. Requires wall access for wire routing behind each letter.
Raceway Mount
Letters attached to a painted raceway box that houses the wiring. Single wall penetration, faster install, permit-friendly. Halo is slightly softer than standoff but often preferred by landlords and strip-mall owners.
Flush / Minimal Mount
Letters set very close to the wall (1/2"–3/4") for a subtle, understated halo. Reads as a shadow-edge glow rather than a full ring. Used when a quieter effect or tight architectural profile is required.
Concept to Halo in 4 Steps
Every project follows the same proven workflow. You'll always know what stage you're in and what comes next.
Design & Survey
Site measurements, wall-surface assessment, brand-color specs. You get a photoreal day/night rendering before anything ships.
Permit & Engineering
Structural calcs, wet-stamped drawings, LADBS/city submittal, landlord approval — we handle every form and signature.
Fabrication
CNC cut, metal form, Mathews paint, LED placement calibration, interior reflector finish, QA — all in our Gardena shop.
Install & Tune
Laser-aligned standoff installation, electrical hookup, halo fine-tune at dusk, city inspection. Lights on — usually same day.
Six Reasons LA's Upscale Brands Pick Halo Lit
Signature Halo Effect
Soft ambient glow radiates from behind each letter. Readable at night, sophisticated at every angle. No other sign type delivers this look.
Upscale Brand Presence
Hotels, law firms, corporate HQs, and luxury retail pick halo lit because it quietly signals quality without competing with the architecture.
Sculptural Daytime Read
Solid painted faces give you a crisp, dimensional letterform in daylight. Your brand works 24 hours — not just at night.
Efficient LED Tech
Commercial-grade LEDs rated 50,000–100,000 hours. Uses ~80% less energy than neon while delivering a cleaner, more even glow.
Finish Flexibility
Painted aluminum, brushed aluminum, satin stainless, or bronze — pick a face finish that matches your architectural intent.
Code Compliant
UL Listed components + engineered standoff mounting = approved in every SoCal jurisdiction we've permitted in.
Industries That Rely on Halo Lit Letters
Hotels & Hospitality
Boutique hotels on Sunset, properties in Beverly Hills, and upscale motels use halo letters to set the tone the moment guests pull up.
Law & Financial
Attorneys and financial institutions want permanence and authority. A halo-lit name plate says "established" without a raised voice.
Medical & Dental
Surgery centers, specialty clinics, and medical campuses use the soft glow to signal cleanliness, modernity, and trust.
Luxury Retail
Jewelry, fashion boutiques, and flagship stores pair halo letters with architectural facades for a quiet, confident statement.
Corporate Offices
Corporate HQs and Class A offices choose halo letters for building identification that reads as professional and enduring.
Upscale Restaurants
Fine-dining establishments and chef-driven concepts pick halo lit to match the quality of the food — understated, refined, memorable.
When Back Lit Is — and Isn't — Your Best Choice
We build every channel letter type. Here's an honest look at when halo lit wins and when another option fits better.
Choose back lit if Yes
- You want a sophisticated halo glow that signals upscale without shouting.
- Your business is a hotel, law firm, medical practice, luxury retailer, or corporate HQ.
- Your wall is light-colored, smooth, and reflective enough to carry the halo.
- You need readable daytime signage AND a distinctive nighttime presence.
- Landlord or architect design guidelines allow illuminated channel letters on the facade.
Consider another option if Maybe not
- You need maximum daytime readability — see front lit channel letters.
- You want architectural premium with stainless or bronze faces — see reverse channel letters.
- You want a modern slim-profile edge glow — see edge lit letters.
- Your wall is dark, brick, or heavily textured — see cabinet signs.
- You're on a freestanding lot — see monument or pylon.

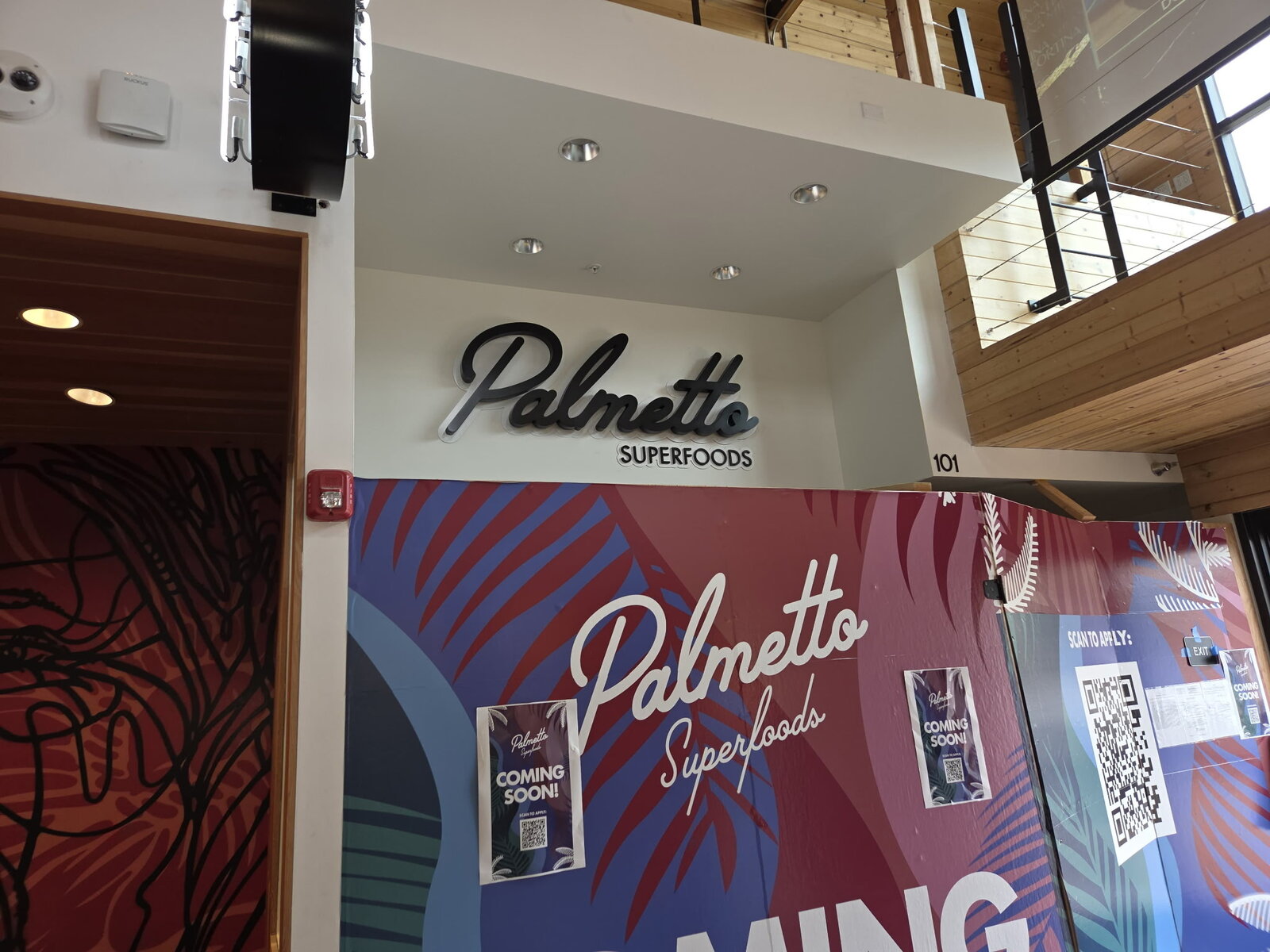

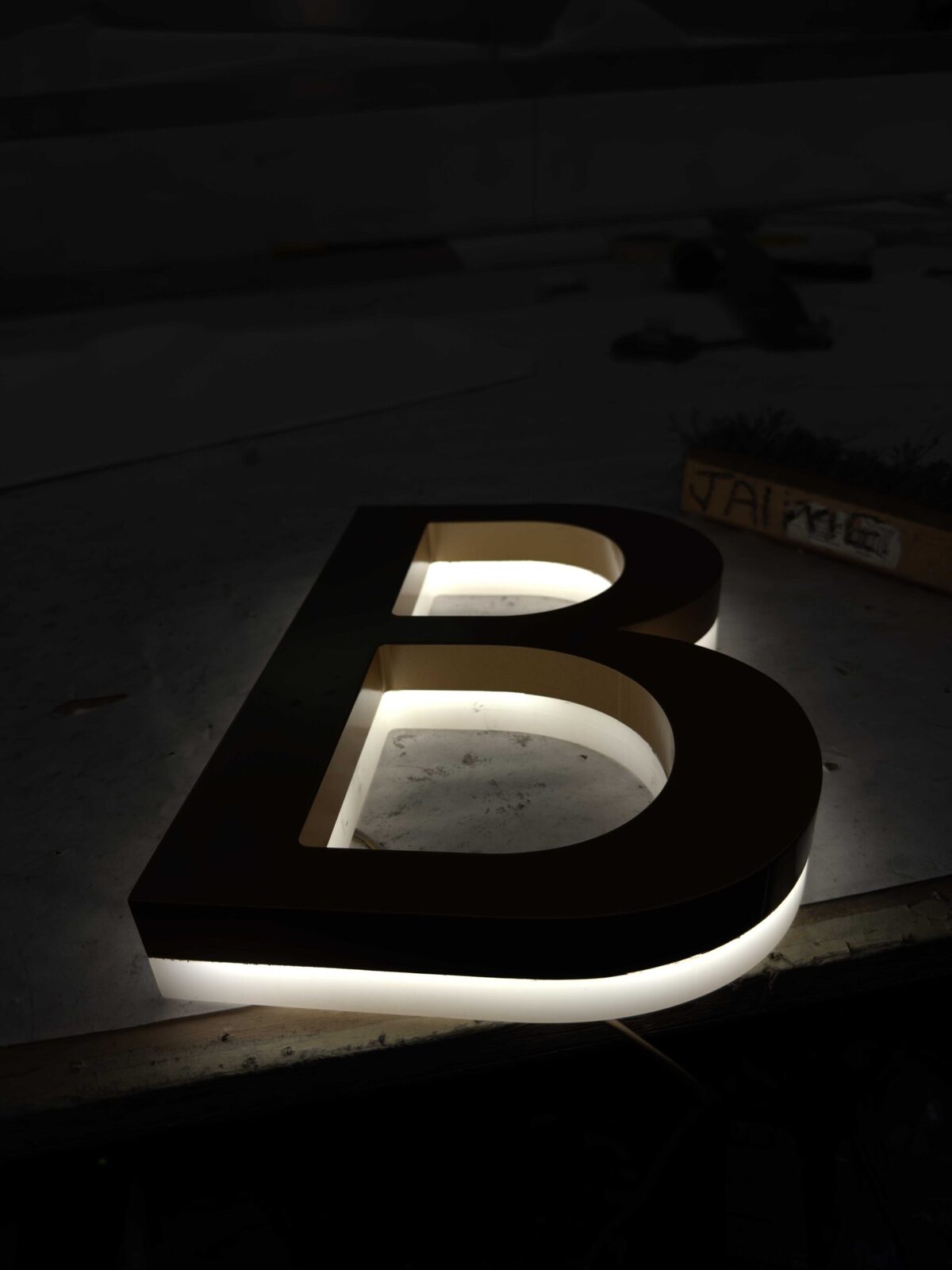

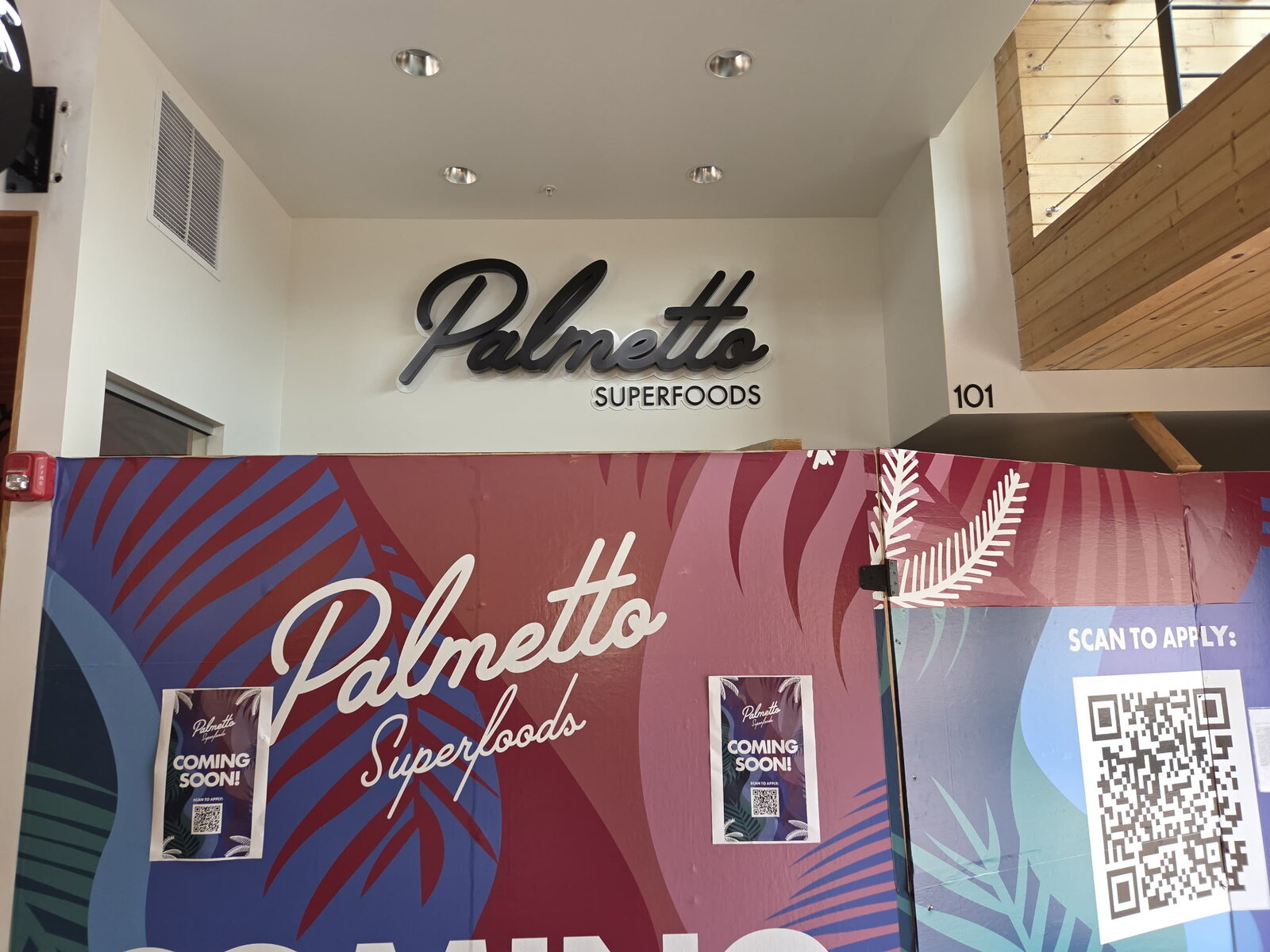

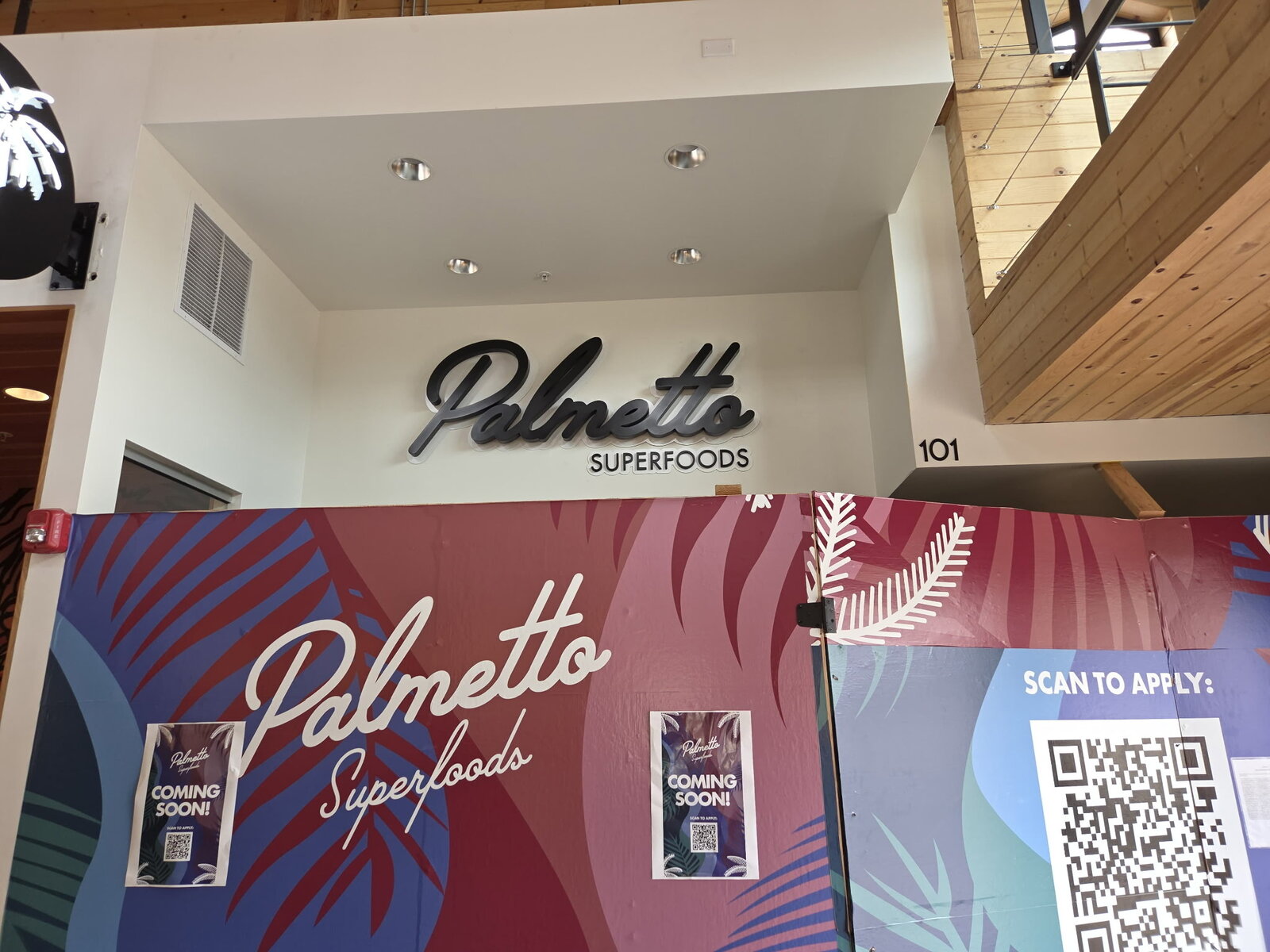

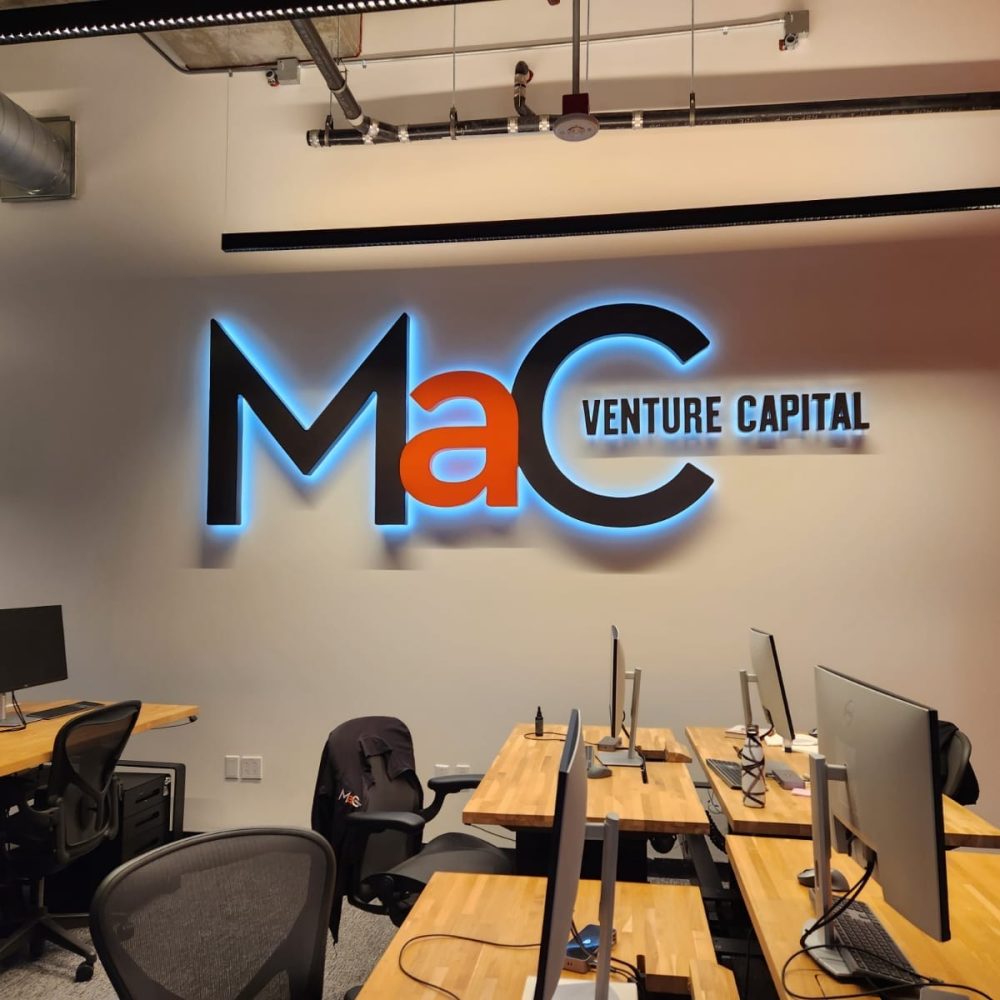

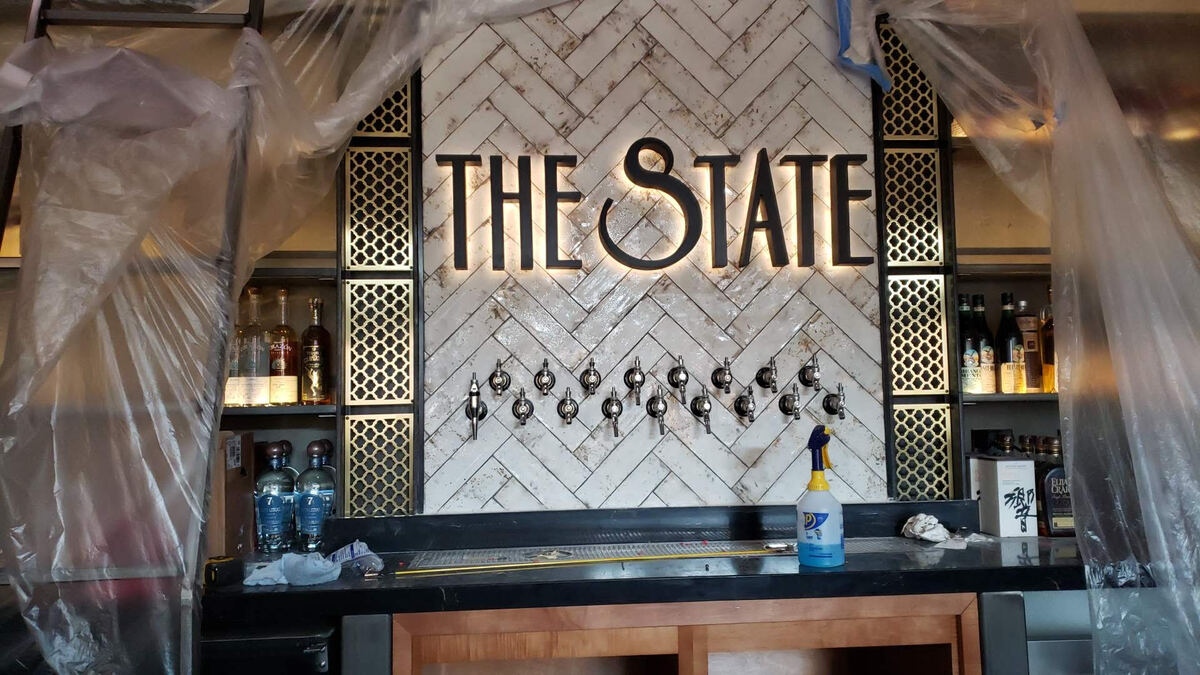

Back Lit Projects We've Built
Halo sets fabricated and installed by Genius Signs across LA. Every photo is a real job — no stock imagery.
Frequently Asked Questions
What is the difference between back lit and front lit channel letters?
Pricing is case-by-case — final price depends on letter count, size, face/return material, standoff depth, mounting method. Permits are a fixed $1,500 flat fee. Standard lead time is 2–3 weeks for production after permit approval. See the pricing section above for full details, or request a free quote.
What businesses are best suited for back lit channel letters?
Back lit channel letters are ideal for businesses that want an upscale, sophisticated appearance. They are commonly used by hotels, high-end restaurants, law firms, medical offices, financial institutions, luxury retail stores, and corporate offices. The subtle halo glow conveys elegance and professionalism, making them a favorite for businesses in competitive commercial areas throughout Los Angeles.
What materials are used for back lit channel letter faces?
Back lit channel letter faces are typically made from aluminum sheet (painted with Mathews Paint for exact brand color matching) or opaque acrylic. Unlike front lit letters, the face material is solid and non-translucent because the light projects backward, not forward. Some designs use brushed aluminum, polished stainless steel, or even bronze-finished faces for an additional premium look.
Can back lit channel letters be mounted on any building surface?
Back lit channel letters work best on smooth, light-colored wall surfaces that reflect the halo glow effectively. They can be mounted on stucco, EIFS, concrete, stone, and metal panels. Dark or heavily textured surfaces may reduce the halo effect. Genius Signs evaluates your building surface during the site survey and recommends the best mounting approach, including standoff distance, to maximize the halo illumination.
Explore More Sign Options
Front Lit Channel Letters
The most popular LA channel letter — translucent acrylic faces with forward-facing LED glow for maximum daytime and nighttime readability.
Reverse Channel Letters
Premium halo-lit letters with brushed aluminum, polished stainless, or bronze faces. The architectural upgrade to standard back lit.
Edge Lit Channel Letters
Modern slim-profile letters with a thin edge glow. Contemporary aesthetic for tech, design, and architectural spaces.
Ready to start your halo lit project?
Free photoreal mockup on your actual facade — before you pay a dollar. Licensed C-45. Fabricated in Gardena, installed across Southern California.
